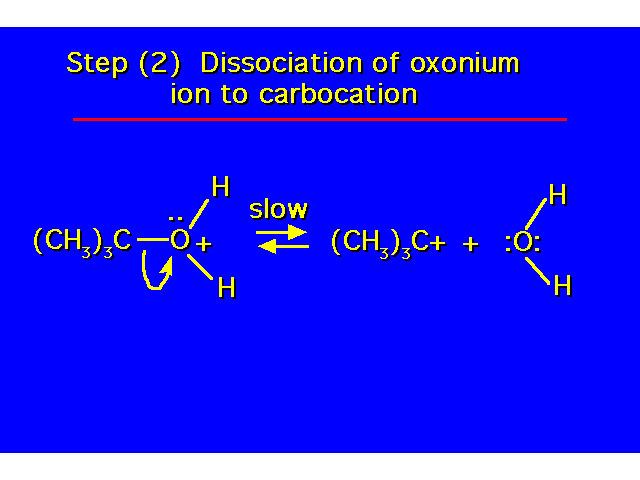

| This is the rate determining step for this reaction. Only one molecule is involved in this step -- unimolecular. This is an example of an E1 mechanism (elimination unimolecular). |  |
 | |
 | |
 | |
 | |
 | |
 | |
 | |
 | |
 | |
 | |
 | |
 | |
 | |
|
|
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| This is the rate determining step for this reaction. Only one molecule is involved in this step -- unimolecular. This is an example of an E1 mechanism (elimination unimolecular). | |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
